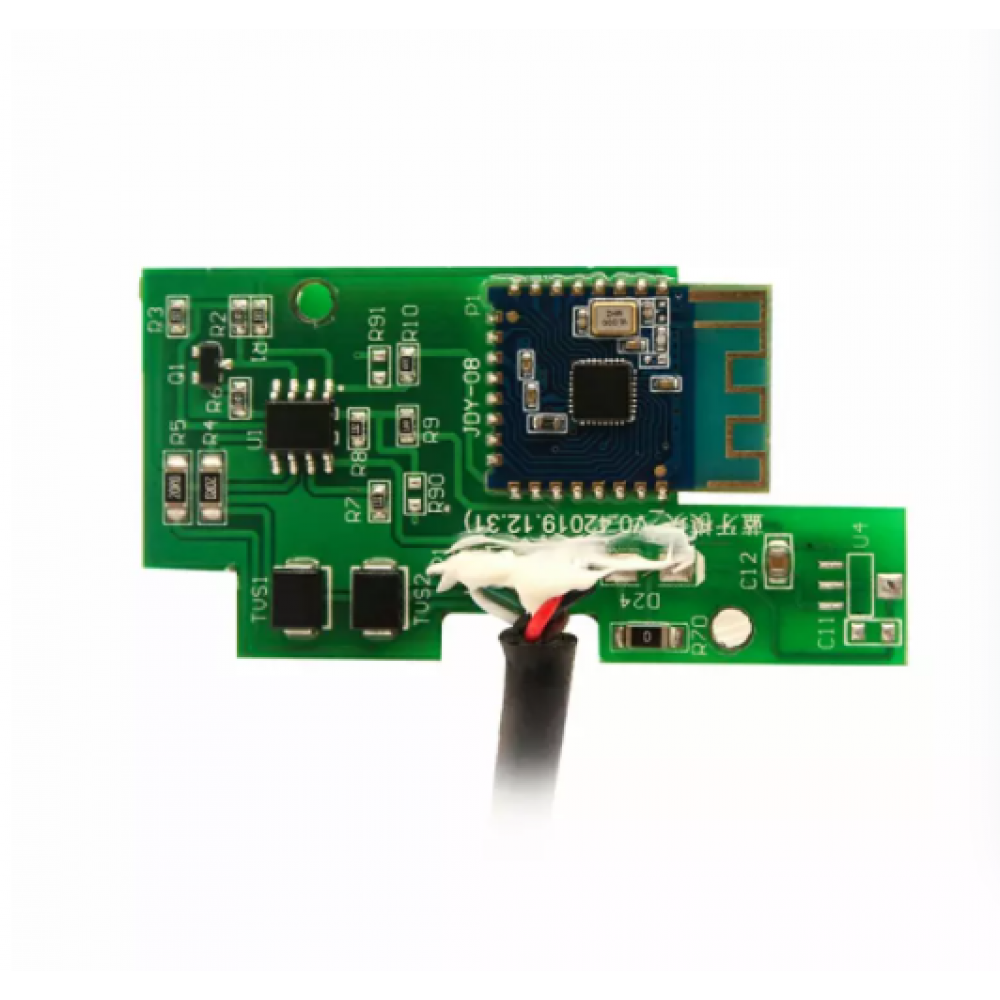

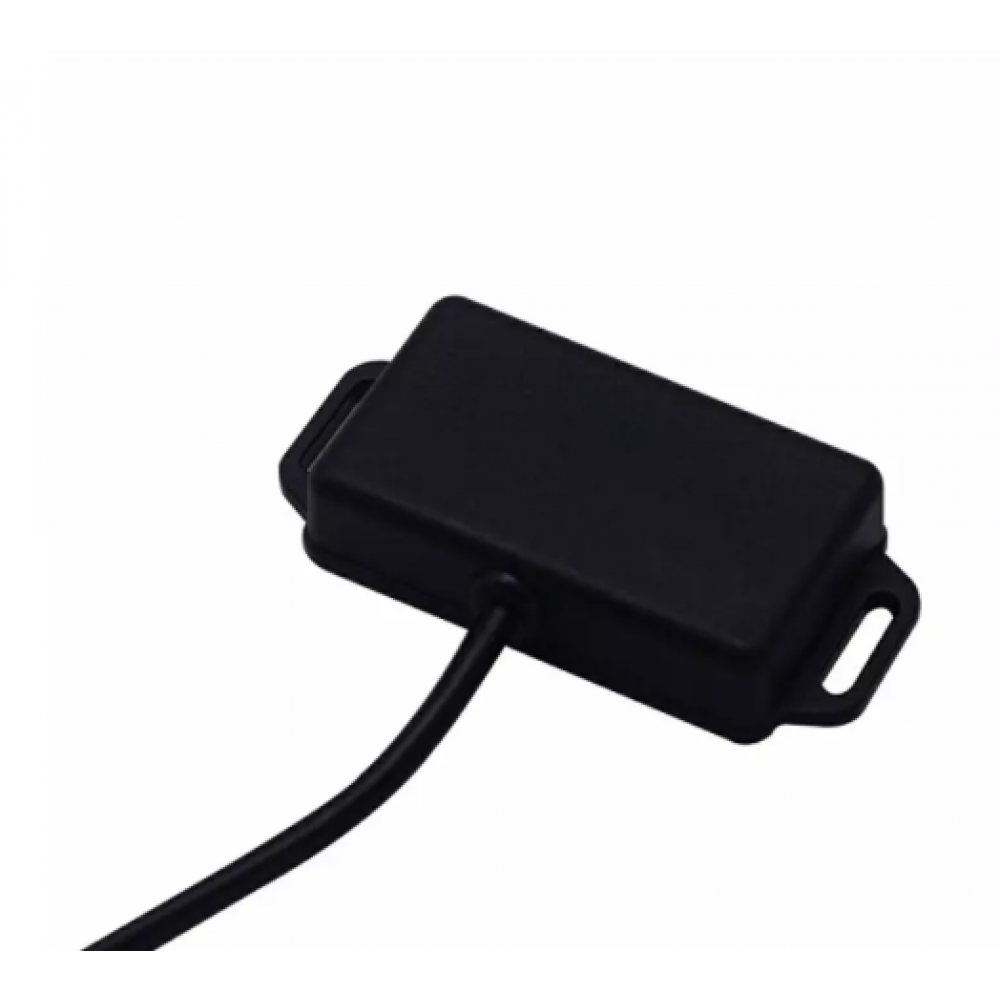

Bluetooth module

Part No.: AS-BM

AS-BM is a Bluetooth module designed for empowering our company's solar charge controllers with Bluetooth communication function.

Product DescriptionSpecificationDownloadPackage Includes

Description

By teaming up with a cellphone APP, it can be used to perform wireless monitoring, parameters setting and data checking on the system.

Key Features

■Realizes wireless monitoring and control function over the solar charge controller

■ Supports cellphone APP, and boasts a plug and play feature and easy setting

■Employs a dedicated Bluetooth chip with high performance and ultra low power consumption

■Adopts Bluetooth 4.0 and BLE technologies, boasting advantages of quick communication, excellent anti-interference capability, etc.

■Dispenses with external power source, being powered directly through the communication port

■Boasts a communication distance of up to 15 m

ITEM	PARAMETERS
Model	BM
Input voltage	5V-12V
Standby power consumption	0.04W
Operating power consumption	0.05W
Communication distance	≤15m
Serial baud rate	Fixed baud rate 9600bps
Communication mode	RS485

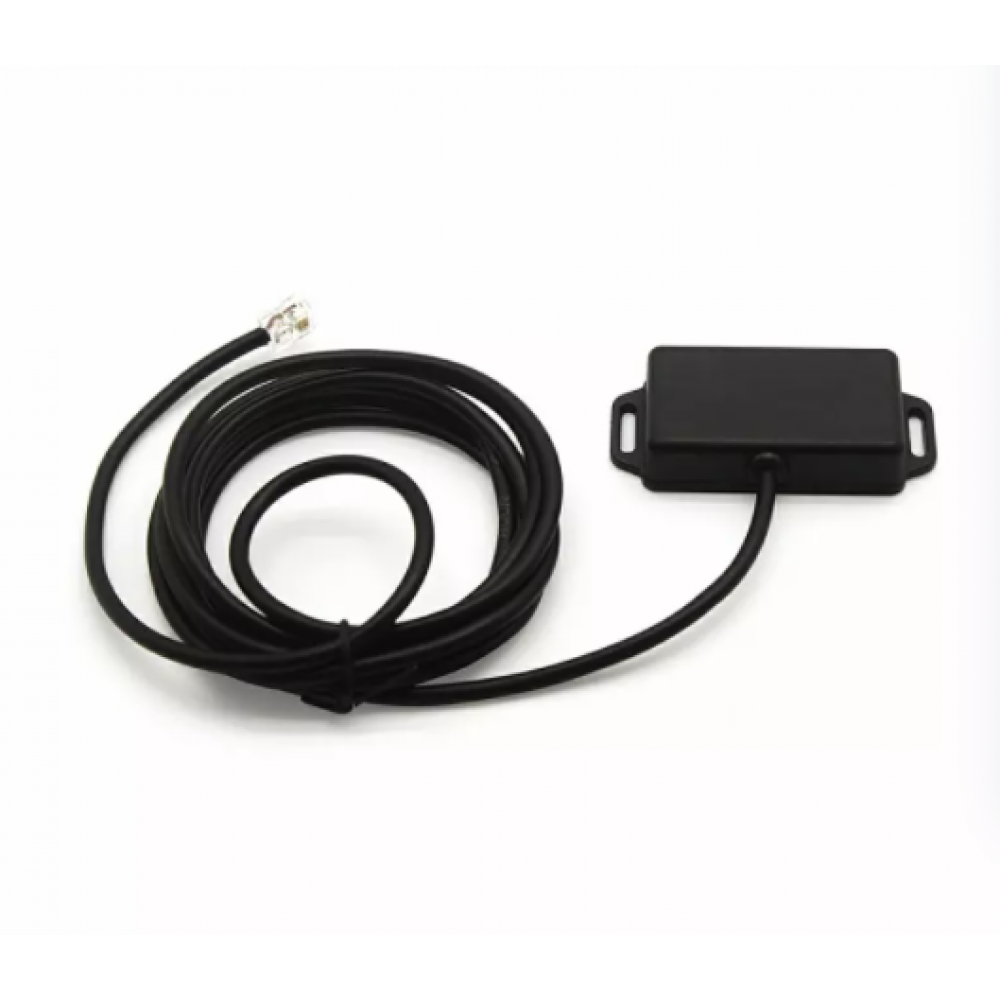

Port type	RJ12
Connection cable	Standard network cable (parallel cable)
Dimensions	665115.5mm
Installation dimensions	57.5, φ3.2mm
Operating temperature	-20°C to 75°C
Protection degree	IP67
Net weight	120g
